Manhattan column failure raises warning over office to residential projects

Jul, 08, 2026
Columns Damage (Structural) News On Natural Disasters / Failures
United States, New York, New York
Authored by: TheCivilEngineer.org

*Emergency crews responded after two structural columns buckled inside the former Pfizer building in Manhattan during conversion works. Source: NYC Department of Buildings*

A high-rise building in Manhattan was declared unstable after two structural columns buckled during works to convert the former Pfizer headquarters into residential apartments. The incident occurred at an active construction site on East 42nd Street, between Second and Third avenues, close to Grand Central Terminal.

Emergency officials reported structural issues on the 21st floor, including buckled columns, multiple cracks and sagging floors. Nearby buildings were evacuated as a precaution, while drones were deployed to support visual inspection and technical assessment of the damaged area.

No injuries were reported. Workers noticed the warning signs and evacuated, allowing emergency teams and engineers to begin stabilisation before a more serious failure developed. Temporary measures were expected to include hydraulic jacks and steel shoring to support the affected area while the structure was assessed and repaired.

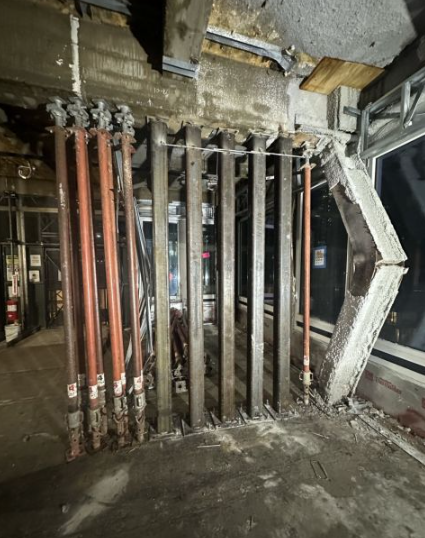

Buckled steel column and temporary shoring inside the Manhattan high-rise conversion site, showing the emergency stabilisation required after structural distress was detected. Source: NYC Department of Buildings

The building is part of a major office to residential conversion. Early reports indicated that the damaged columns were located beneath a new 10-storey horizontal expansion added to upper floors. If confirmed, this would make the incident a strong reminder that adaptive reuse is not only an architectural challenge. It is a structural re-verification exercise.

A building designed decades ago for office use was originally calculated around a specific loading pattern, structural layout, material condition and load path. When floors are added, layouts are changed or new residential loads are introduced, the forces through beams, columns, connections and foundations can change significantly.

This is especially important in older steel-framed buildings. Even if original drawings exist, engineers still need to verify the actual condition of the structure. Corrosion, past modifications, connection details, construction tolerances, undocumented repairs and material ageing can all affect available capacity.

Column buckling is particularly serious because it can indicate that a compression member has exceeded its stable load-carrying capacity or has been affected by local weakness, eccentric loading or altered restraint conditions. Once a column buckles, load may redistribute to neighbouring elements, creating additional risk if temporary support is not installed quickly.

The Manhattan incident also highlights the importance of construction-stage inspection and safety culture. The workers who identified cracking and deformation and left the site helped prevent potential casualties. On complex conversion projects, early warning signs such as floor deflection, cracking, unusual noises, connection movement or visible column distortion must be treated as critical.

Emergency stabilisation is only the first step. Engineers will need to determine whether the damage is local or connected to a wider load-transfer issue. This includes checking the affected columns, adjacent beams, floor diaphragms, connections, temporary works, new added loads and the sequence of construction.

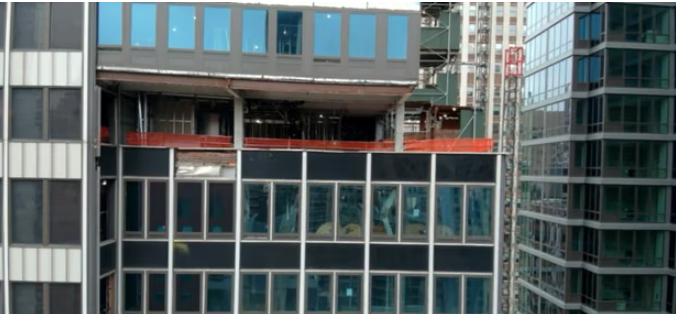

Exterior view of the affected high-rise, where local structural instability during office-to-residential conversion works prompted evacuations and emergency repairs. Source: The Guardian (image by FDNY)

The wider lesson is clear. High-rise conversions can be sustainable and commercially valuable because they reuse existing structures. However, they must be supported by rigorous structural assessment, realistic load modelling, intrusive investigation where needed and continuous monitoring during construction.

A building conversion should never assume that an old frame can safely accept a new use simply because it has stood for decades. The structure must be proven again, under the loads and geometry it is being asked to carry today.
