PotholePrevention RoadMaintenance CivilEngineeringInnovations

Paving the Way: Innovative Solutions for Pothole Prevention and Repair

*A pothole that can cause significant danger. Source: What Car*

Understanding the Pothole Problem

Potholes are more than just a nuisance; they pose significant dangers to road users and incur substantial repair costs. The formation of potholes begins with microscopic cracks in the road surface, exacerbated by factors like bad weather, poor drainage, and heavy traffic. Over time, these small cracks grow into larger holes, disrupting traffic flow and damaging vehicles. Despite the continuous efforts to repair them, potholes remain a persistent issue, primarily due to inadequate construction methods and maintenance practices.

Characteristically, in the UK alone, over 2 million potholes were repaired in 2017, costing approximately £120 million. In the U.S., road repair bills are projected to reach £14 billion, significantly outpacing the total highways budget. These numbers highlight the seriousness of the pothole issue and the need for effective solutions.

Schematic illustration of pothole formation. Source: Research gate Article on the Road Materials and Pavement Design

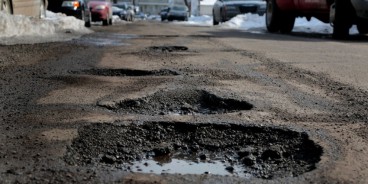

Large pothole formation. Source: Don Iveson

Causes and Prevention of Potholes

The primary ingredients for pothole formation are traffic and water. Roads are constructed in layers, with the top layer designed to resist water and promote drainage. However, weather changes cause the road materials to expand and contract, leading to cracks. These cracks allow water to seep in, which freezes and expands during cold nights, further widening the cracks. The constant pressure from traffic then deteriorates these weak spots, forming potholes.

To prevent potholes, it is crucial to adopt proper construction techniques and maintenance practices:

Survey and Monitoring: Regularly survey pavements to identify early signs of damage. Early intervention can prevent small cracks from developing into potholes.
Drainage Design: Ensure roads have well-designed drainage systems, including shoulders and drainage structures, to prevent water accumulation.
Preventive Maintenance: Implement a maintenance program that includes crack sealing and timely repairs. Using the right materials for repairs can significantly extend the pavement's lifespan.

Innovations in Pothole Repair

Innovative solutions are emerging to address the pothole problem more effectively. One such advancement is the development of self-healing asphalt, which incorporates tiny capsules containing asphalt rejuvenators like sunflower oil. These capsules break open when cracks form, releasing the oil to soften and fill the cracks, thus preventing potholes from developing. This technology can delay pothole formation by at least five years, reducing the need for frequent repairs.

Another promising solution is the Controlled Pothole Repair System (CPRS). This system uses infrared heat to preheat the road surface and the area below it before making repairs. By ensuring the repair material bonds more effectively with the surrounding road, this method can extend the lifespan of repairs to up to five years, compared to the average two years with conventional methods.

Concluding Remarks

Addressing the pothole problem requires a combination of proper construction practices, regular maintenance, and innovative repair technologies. By adopting these strategies, we can create more durable road surfaces, reduce maintenance costs, and enhance road safety.

The following video gives a thorough explanation of the self healing asphalt technique.
